빗물 재활용 시스템. 일반주택용

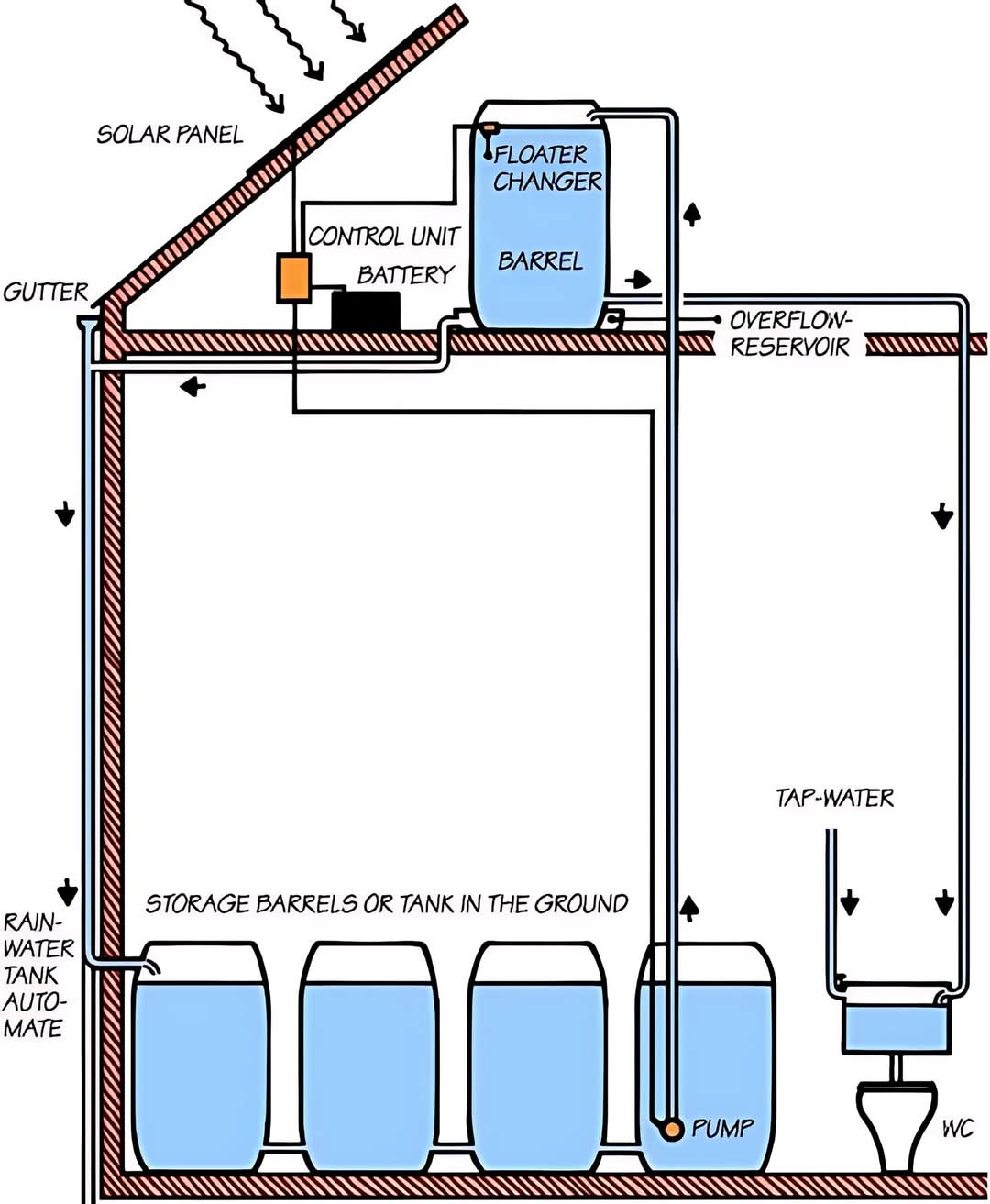

빗물 수확과 태양열 에너지를 활용하도록 설계된 가정용 물 시스템을 묘사한 것으로, 변기 세척이나 기타 비음용 용도로 사용할 수 있습니다. 구성 요소와 기능을 살펴보겠습니다.

구성 요소:

태양광 패널: 지붕에 위치하여 햇빛에서 전기를 생성합니다.
홈통: 지붕에서 빗물을 모읍니다.
빗물 탱크 자동화: 빗물이 저장통으로 흐르는 것을 관리하는 센서 또는 밸브 시스템일 가능성이 큽니다.
지하 저장통 또는 탱크: 수집된 빗물을 저장하는 주요 저장소입니다.
펌프: 저장통에서 변기로 물을 펌핑합니다.
WC(물 변기 - 변기): 저장된 빗물을 사용하여 세척합니다.
수돗물: 백업 또는 기타 용도로 사용할 수 있는 시립 상수도에 연결되어 있음을 나타냅니다.
오버플로우 저수조: 저장통이 가득 찼을 때 과도한 빗물을 처리하는 안전 장치입니다.
통: "플로터 체인저" 메커니즘에 사용되는 더 작은 통입니다.
플로터 체인저: "배럴"의 수위를 관리하고 펌프 또는 빗물 흐름을 제어할 수 있는 메커니즘(플로트와 밸브가 포함될 가능성이 높음).
제어 장치 및 배터리: 펌프와 "플로터 체인저"를 포함한 시스템 작동을 관리하고 태양광 패널에서 에너지를 저장합니다.
프로세스(다이어그램 기반):

빗물 수집: 빗물은 홈통에서 수집되어 저장 통으로 보내집니다.
저장: 빗물은 땅에 있는 통이나 탱크에 저장됩니다.
태양열: 태양광 패널은 전기를 생성하여 배터리에 저장합니다.
제어 및 펌핑: 제어 장치는 배터리에 저장된 태양열을 사용하여 펌프와 "플로터 체인저"를 관리합니다.
물 공급: 펌프는 저장 통에서 변기에 물을 공급하여 물을 흘립니다.
백업 물: 빗물이 고갈되거나 다른 용도로 사용할 때 수돗물을 백업으로 사용할 수 있습니다.
오버플로 관리: 오버플로 저수조는 홍수를 방지하기 위해 과도한 빗물을 처리합니다.

해석 및 목적:

이 다이어그램은 가정의 지속 가능한 물 관리 시스템을 보여줍니다. 그 목적은 다음과 같습니다.

지자체 물 의존도 감소: 변기 세척에 빗물 사용

재생 에너지 활용: 태양열로 시스템 구동

물 절약: 빗물 효율적으로 관리하고 재사용

가능한 이점:

수도 요금 절감: 변기 세척에 수돗물 대신 빗물 사용

환경적 지속 가능성: 수자원 보존 및 에너지 소비 감소
오프그리드 잠재력: 태양열 시스템은 잠재적으로 그리드와 독립적으로 작동할 수 있습니다.
제한 사항 및 고려 사항:

단순화: 다이어그램은 복잡한 시스템을 단순화하여 표현한 것입니다.
자세한 기능: "플로터 체인저" 및 "빗물 탱크 자동화"의 자세한 기능은 명확하게 설명되지 않았습니다.
유지 관리: 이 시스템은 기능을 보장하기 위해 정기적인 유지 관리 및 모니터링이 필요합니다.
수질: 빗물은 사용 시 안전을 보장하기 위해 여과 및 처리해야 합니다.
전반적으로 이 다이어그램은 빗물 수확과 태양열을 통합한 가정용 물 시스템의 개념적 개요를 제공합니다. 주거 환경에서 지속 가능한 물 관리의 잠재력을 강조합니다.

depicts a home water system designed to utilize rainwater harvesting and solar energy, potentially for toilet flushing or other non-potable uses. Let's break down the components and their functions:

Components:

Solar Panel: Located on the roof, it generates electricity from sunlight.
Gutter: Collects rainwater from the roof.
Rainwater Tank Automate: Likely a sensor or valve system that manages the flow of rainwater into the storage barrels.
Storage Barrels or Tank in the Ground: These are the primary storage for collected rainwater.
Pump: Pumps water from the storage barrels to the toilet.
WC (Water Closet - Toilet): Uses the stored rainwater for flushing.
Tap Water: Indicates a connection to the municipal water supply, likely for backup or other uses.
Overflow Reservoir: A safety mechanism to handle excess rainwater when the storage barrels are full.
Barrel: A smaller barrel used for the "Floater Changer" mechanism.
Floater Changer: A mechanism (likely involving a float and valve) that manages the water level in the "Barrel" and potentially controls the pump or rainwater flow.
Control Unit & Battery: Manages the system's operation, including the pump and "Floater Changer," and stores energy from the solar panel.
Process (Based on the Diagram):

Rainwater Collection: Rainwater is collected by the gutter and directed to the storage barrels.
Storage: Rainwater is stored in the barrels or tank in the ground.
Solar Energy: The solar panel generates electricity, which is stored in the battery.
Control and Pumping: The control unit manages the pump and "Floater Changer," using solar energy stored in the battery.
Water Delivery: The pump delivers rainwater from the storage barrels to the toilet for flushing.
Backup Water: Tap water is available as a backup when rainwater is depleted or for other uses.
Overflow Management: The overflow reservoir handles excess rainwater to prevent flooding.
Interpretation and Purpose:

This diagram illustrates a sustainable water management system for a home. It aims to:

Reduce reliance on municipal water: By utilizing rainwater for toilet flushing.
Utilize renewable energy: By powering the system with solar energy.
Conserve water: By efficiently managing and reusing rainwater.
Possible Benefits:

Reduced Water Bills: By using rainwater instead of tap water for toilet flushing.
Environmental Sustainability: By conserving water resources and reducing energy consumption.
Off-Grid Potential: The solar-powered system could potentially operate independently of the grid.
Limitations and Considerations:

Simplification: The diagram is a simplified representation of a complex system.
Detailed Functionality: The detailed functionality of the "Floater Changer" and "Rainwater Tank Automate" is not clearly explained.
Maintenance: The system requires regular maintenance and monitoring to ensure its functionality.
Water Quality: The rainwater should be filtered and treated to ensure its safety for use.
Overall, this diagram provides a conceptual overview of a home water system that integrates rainwater harvesting and solar energy. It highlights the potential for sustainable water management in residential settings.
