DIY 태양열 온수기, 좋은 아이디어네요 👍 🧰 단계별 설명: 🔧 1. 병 준비 • 각 플라스틱 병을 깨끗이 씻으세요. • 각 병 바닥에 다음 병의 목을 끼울 수 있을 만큼의 구멍을 뚫으세요. • 각 병의 뚜껑을 제거하세요. (터널처럼 서로 밀어 넣어집니다.) • 병의 목을 바닥에 맞춰 끼워 파이프를 위한 긴 보호 터널을 만드세요. ⸻ 🧵 2. 검은색 튜브 삽입 • 검은색 파이프/튜브를 원하는 길이(일반적으로 줄당 약 1.5m)로 자르세요. • 파이프를 병 중앙에 삽입하세요. • 튜브가 병 안에 들어가도록 하세요. 이렇게 하면 열을 가두는 데 도움이 됩니다. ⸻ 🔩 3. 지지대 만들기 • 나무나 금속으로 기울어진 틀을 만들어 병 줄을 고정하세요. 30~45° 각도가 이상적입니다. • 케이블 타이 또는 클램프를 사용하여 파이프와 물병을 프레임에 고정합니다. • 물이 중력에 의해 아래로 흐르도록 바닥이 위쪽보다 낮은지 확인합니다. ⸻ 🔁 4. 물 입구와 출구 연결 • 검은색 튜브의 윗부분을 고가 물탱크의 냉수 입구에 연결합니다. • 튜브의 아랫부분을 온수를 탱크로 다시 공급하는 환수관 또는 샤워 수도꼭지에 직접 연결합니다. • PVC 엘보와 T자형 조인트를 사용하여 파이프를 연결합니다. ⸻ 🌞 5. 시스템 설치 • 물탱크를 태양열 집열기 상단보다 최소 30cm 높은 곳에 설치합니다. • 물탱크를 집열기와 물 배출구(샤워기, 세면대)에 연결합니다. • 물탱크를 채우고 누수 여부를 확인합니다. ⸻ 🔥 6. 햇빛 아래에서 테스트하세요 • 화창한 날, 검은색 튜브 안의 물은 몇 시간 후 40~60°C(104~140°F)까지 가열됩니다. • 물이 아직 따뜻할 때 낮이나 저녁에 사용하세요. ⸻ 💡 성능 향상 팁: • 햇빛 투과율을 높이려면 투명한 PET 병을 사용하세요. • 열을 최대한 흡수하려면 튜브가 검은색인지 확인하세요. • 열 손실을 방지하기 위해 상단 및 환수관을 단열하세요. • 집열기를 태양을 향하도록 각도를 맞추세요(북반구는 남쪽, 남반구는 북쪽).
DIY solar water heater, nice idea
Step-by-Step Instructions:

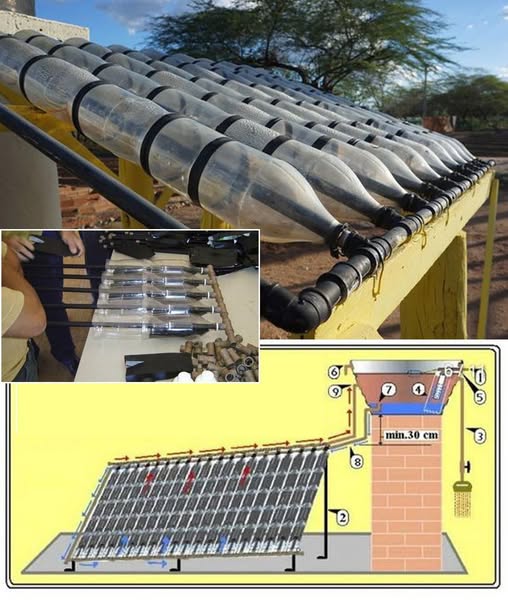

1. Prepare the Bottles
• Clean each plastic bottle thoroughly.
• Cut a hole in the bottom of each bottle (just large enough to insert the next bottle’s neck).
• Remove the cap of each bottle (they will slide into each other like a tunnel).
• Slide the bottles together neck into bottom to create a long protective tunnel for the pipe.
⸻
2. Insert Black Tubing
• Cut black pipe/tubing to desired lengths (usually ~1.5 m per row).
• Insert the pipe through the center of the bottles.
• Make sure the tubing stays inside the bottles—this helps trap heat.
⸻
3. Build the Support Frame
• Build a tilted frame using wood or metal to hold the bottle rows. A ~30–45° angle is ideal.
• Secure the pipe+bottle units to the frame using zip ties or clamps.
• Ensure the bottom is lower than the top so water flows down by gravity.
⸻
4. Connect Water Inlet and Outlet
• Connect the top end of the black tubing rows to a cold water inlet from the elevated water tank.
• Connect the bottom end of the tubing rows to a return pipe that brings heated water back up to the tank or directly to a shower tap.
• Use PVC elbows and T-joints to join pipes.
⸻
5. Set Up the System
• Place the water tank at least 30 cm higher than the top of the solar collector.
• Connect the tank to the collector and your water outlet (shower, sink).
• Fill the tank and check for leaks.
⸻
6. Test It Under the Sun
• On a sunny day, water inside the black tubes will heat up to 40–60°C (104–140°F) after a few hours.
• Use during daylight or evening when water is still warm.
⸻
Tips for Better Performance:
• Use clear PET bottles for best sunlight penetration.
• Make sure the tubing is black to absorb maximum heat.
• Insulate the top and return pipes to avoid heat loss.
• Angle the collector to face the sun (south in northern hemisphere, north in southern).
